Ansible Playbooks for Proxmox and Frigate VM to enable Coral Edge TPU PCIe

Introduction

I have recently setup Frigate (running under Docker) on an Ubuntu 24.04 server, this server is a virtual machine running under Proxmox.

These Ansible tasks will allow a Coral PCIe Edge TPU to be passed from the host (Proxmox) to the virtual machine where Frigate is installed.

I had some issues originally, and with the help of these online forum posts I have been able to have Frigate up-and-running with the Coral device:

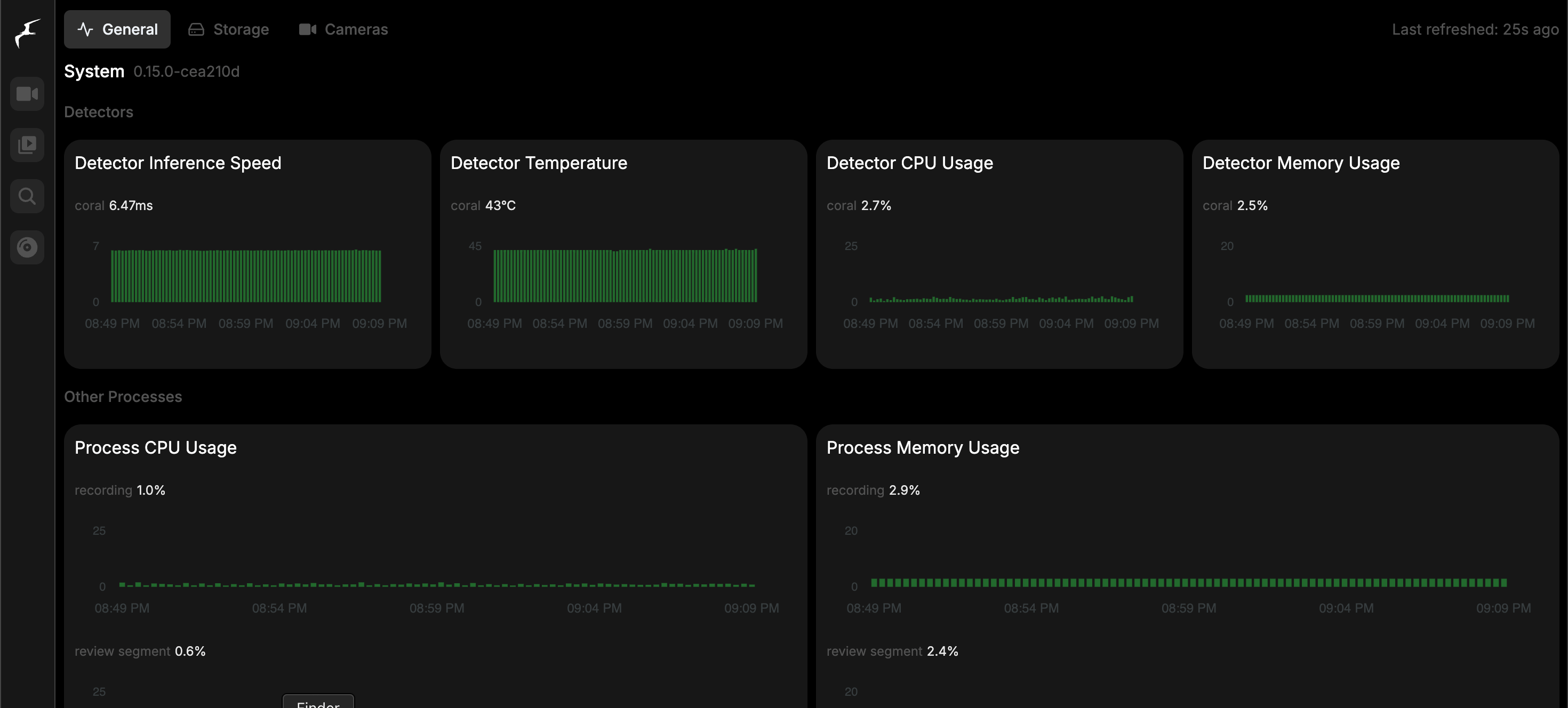

Frigate Metrics

Proxmox playbook tasks

Use these tasks to integrate into your Ansible playbooks. Please note:

  • Set your Coral device ID here: device_id. I'm using 1ac1:089a which appears to be the default for the PCIe adapter.
  • Then set your proxmox_virtual_machine_passthrough to your virtual machine ID for the Frigate NVR e.g. 101

These tasks will:

  1. Look for the Coral device on your system using lspci.
  2. If found, it will continue to configure the device:
  3. Retrieve the PCI Bus Number
  4. Check if the device is in it's own 'iommu' group ID. This is required as passthrough will not work if the device is not assigned it's own group.
  5. I have added a work around to update the Grub Bootloader with the pcie_acs_override=downstream,multifunction" option. This task will ask you to confirm first before running. It's important you have a backup of your system before continuing. I had good success with this Grub argument to force the device into it's own group. However there may be security issues enabling this, I'm not running this on a production envrionment so not too bothered about these issues.
  6. After a reboot, the device will be checked again to ensure it is in it's own 'iommu' group ID.
  7. If yes, a black list file for the device will be created at /etc/modprobe.d/blacklist-apex.conf.
  8. Then Apex and Gasket modules will be checked to ensure they're installed on the system.
  9. Finally the Coral device will be assigned to the hardware list for your virtual machine ID specificed in proxmox_virtual_machine_passthrough.

Playbook tasks:

---
# This will pass through the Coral PCIe Accelerator to the specific Proxmox virtual machine
- name: Set Coral device facts
  set_fact:
    device_id: "1ac1:089a"                    # Coral PCIe device ID
    proxmox_virtual_machine_passthrough: 101  # The ID of your Virtual Machine in Proxmox

- name: Check the Coral PCI device is found on the system
  become: true
  shell:
    cmd: lspci -nnk | grep {{ device_id}}
  register: coral_found
  ignore_errors: true

# If device ID not found
- when: device_id not in coral_found.stdout
  block:
    - name: Fail, cannot continue
      ansible.builtin.fail:
        msg: "Coral Device ID `{{ device_id }}` not found in `lspci -nnk`. Now failing."

# If device ID has been found
- name: Coral Device ID `{{ device_id }}` has been found. Continuing to pass the device through to container {{ proxmox_virtual_machine_passthrough }}
  when: device_id in coral_found.stdout
  block:
    - name: Result from the `lspci -nnk`
      debug: msg="{{ coral_found.stdout }}"

    - name: Updating Coral facts
      set_fact:
        # Split by ` System peripheral` and store the first value which is the PCI device bus number
        device_bus_number: "{{ coral_found.stdout.split(' System peripheral')[0] }}"

    # Device bus iommu group check
    - name: Device bus iommu group check
      when: device_bus_number is defined
      block:
        - name: Make the device bus is in an iommu group
          become: true
          shell:
            cmd: find /sys/kernel/iommu_groups/ -type l | grep {{ device_bus_number }}
          register: bus_iommu_groups_find

        - name: Result from `find /sys/kernel/iommu_groups/ -type l`
          debug: msg="{{ bus_iommu_groups_find.stdout }}"

        - name: Updating Coral facts
          set_fact:
            # Remove the `/sys/kernel/iommu_groups/` text and split by `/` and store the first value which is the iommu group ID number
            bus_iommu_group_id: "{{ (bus_iommu_groups_find.stdout|replace('/sys/kernel/iommu_groups/','')).split('/')[0] }}"

        - name: Storing group ID number to facts
          debug: msg="{{ bus_iommu_group_id }}"

        - name: Now check to make sure no other devices are using iommu group ID `{{ bus_iommu_group_id }}`. Passthrough won't work if more than one device in the same group.
          become: true
          shell:
            cmd: find /sys/kernel/iommu_groups/ -type l | grep /{{ bus_iommu_group_id }}/
          register: bus_iommu_groups_folder_find

        - name: Result from `find /sys/kernel/iommu_groups/ -type l | grep /{{ bus_iommu_group_id }}/`
          debug: msg="{{ bus_iommu_groups_folder_find.stdout }}"


        # Update Grub to force break-up of iommu devices if the device is sharing a group with other devices
        - name: If more than one device in the iommu group ID {{ bus_iommu_group_id }}
          when: bus_iommu_groups_folder_find.stdout_lines | length > 1
          block:
            - name: Note
              debug: msg="It appears more than one device in the iommu group ID {{ bus_iommu_group_id }}. This will require a GRUB amendment..."

            - name: Question
              ansible.builtin.pause:
                prompt: "Do you wish to update GRUB? (yes/no)"
              register: update_grub

            - name: Updating GRUB
              when: update_grub.user_input | lower == 'yes'
              block:
                - name: Set GRUB options for Intel systems to force break-up of iommu devices
                  become: true
                  ansible.builtin.lineinfile:
                    path: /etc/default/grub
                    regexp: '^GRUB_CMDLINE_LINUX_DEFAULT='
                    line: 'GRUB_CMDLINE_LINUX_DEFAULT="quiet intel_iommu=on pcie_acs_override=downstream,multifunction"'
                    backrefs: yes
                  when: ansible_processor[1] == 'GenuineIntel'

                - name: Set GRUB options for AMD systems to force break-up of iommu devices
                  become: true
                  ansible.builtin.lineinfile:
                    path: /etc/default/grub
                    regexp: '^GRUB_CMDLINE_LINUX_DEFAULT='
                    line: 'GRUB_CMDLINE_LINUX_DEFAULT="quiet amd_iommu=on pcie_acs_override=downstream,multifunction"'
                    backrefs: yes
                  when: ansible_processor[1] == 'AuthenticAMD'

                - name: Run `update-grub`
                  become: true
                  ansible.builtin.command:
                    cmd: update-grub

                - name: Rebooting machine
                  become: true
                  ansible.builtin.reboot:
                    reboot_timeout: 300
                    msg: "Rebooting machine in 5 seconds"
                    # reboot_timeout: 3600

                - name: Re-check to make the device bus is in an iommu group
                  become: true
                  shell:
                    cmd: find /sys/kernel/iommu_groups/ -type l | grep {{ device_bus_number }}
                  register: bus_iommu_groups_find

                - name: Result from `find /sys/kernel/iommu_groups/ -type l`
                  debug: msg="{{ bus_iommu_groups_find.stdout }}"

                - name: Updating Coral facts
                  set_fact:
                    # Remove the `/sys/kernel/iommu_groups/` text and split by `/` and store the first value which is the iommu group ID number
                    bus_iommu_group_id: "{{ (bus_iommu_groups_find.stdout|replace('/sys/kernel/iommu_groups/','')).split('/')[0] }}"

                - name: Storing group ID number to facts
                  debug: msg="{{ bus_iommu_group_id }}"

                - name: Now re-checking again to make sure no other devices are using iommu group ID `{{ bus_iommu_group_id }}`.
                  become: true
                  shell:
                    cmd: find /sys/kernel/iommu_groups/ -type l | grep /{{ bus_iommu_group_id }}/
                  register: recheck_bus_iommu_groups_folder_find

                - name: Result from `find /sys/kernel/iommu_groups/ -type l | grep /{{ bus_iommu_group_id }}/`
                  debug: msg="{{ recheck_bus_iommu_groups_folder_find.stdout }}"

                # If still more than one line
                - when: recheck_bus_iommu_groups_folder_find.stdout_lines | length > 1
                  block:
                    - name: Fail, cannot continue
                      ansible.builtin.fail:
                        msg: "Updating group to force break-up of iommu devices has not been successful. Devices are still grouped."


    # Blacklist the device on the Promox host only if the Device ID is found, and the Device Bus Number and iommu Group ID is defined from the previous block
    - name: Check if the blacklist file exists
      become: true
      stat:
        path: /etc/modprobe.d/blacklist-apex.conf
      register: blacklist_apex_file

    - name: Blacklist the device on the Promox host
      when: device_id and device_bus_number and bus_iommu_group_id is defined and blacklist_apex_file.stat.exists == False
      block:
        - name: Create a new blacklist file
          become: true
          ansible.builtin.copy:
            content: |
                    blacklist gasket
                    blacklist apex
                    options vfio-pci ids={{ device_id }}
            dest: /etc/modprobe.d/blacklist-apex.conf

        - name: Update initramfs
          become: true
          ansible.builtin.command:
            cmd: >
              update-initramfs -u -k all

        - name: Rebooting machine
          become: true
          ansible.builtin.reboot:
            reboot_timeout: 300
            msg: "Rebooting machine in 5 seconds"
            # reboot_timeout: 3600

    # Verify that the apex and gasket modules did not load (they should be blacklisted, therefore should not appear)
    - name: Verify that the apex and gasket modules did not load
      become: true
      shell:
        cmd: lsmod | grep apex
      register: apex_found
      ignore_errors: true

    # If this does appear, it has not been blacklisted correctly
    - when: apex_found.stdout | length > 0
      block:
        - name: Fail, cannot continue
          ansible.builtin.fail:
            msg: "Apex and gasket modules has been found when running `lsmod | grep apex`. The device may not have been blacklisted correctly. Now failing."


    # Add the device to the VM if the device is blacklists, and the VM ID and Device Bus Number is defined
    - name: Add the device to the VM  ID `{{ proxmox_virtual_machine_passthrough }}`
      when: apex_found.stdout | length == 0 and proxmox_virtual_machine_passthrough is defined and device_bus_number is defined
      become: true
      shell:
        cmd: qm set {{ proxmox_virtual_machine_passthrough }} -hostpci0 {{ device_bus_number }}

Frigate NVR VM playbook tasks

Once you have run the tasks above on the Proxmox host, you will now need to run these tasks in the virtual machine used by Frigate.

Use these tasks to integrate into your Ansible playbooks. Please note:

  • Set your Coral device ID here: device_id. I'm using 1ac1:089a which appears to be the default for the PCIe adapter.

These tasks will:

  1. Look for the Coral device on your system using lspci.
  2. You will be prompted to confirm you wish to setup the device passthrough.
  3. Apex and Gasket drivers will be checked, and if not found they will be downloaded and built from source from here: https://github.com/google/gasket-driver.
  4. The Apex group and User will be created
  5. Then the virtual machine will be rebooted and the Apex device will be checked again.

Playbook tasks:

---
# Coral PCIe Passthrough - This will configure the Coral PCIe device in Frigate
#
# After running this play, setup the device in Frigate's config: https://docs.frigate.video/configuration/object_detectors/
# detectors:
#   coral:
#     type: edgetpu
#     device: pci
#

- name: Coral PCIe passthrough Question
  ansible.builtin.pause:
    prompt: "Do you wish to setup Coral Passthrough from the host? (yes/no)"
  register: setup_coral_passthrough

- name: Setting up Coral PCIe passthrough (Yes)
  when: setup_coral_passthrough.user_input | lower == 'yes'
  block:
    - name: Set Coral device facts
      set_fact:
        device_id: "1ac1:089a"                    # Coral PCIe device ID

    - name: Check the Coral PCI device is found on the system
      become: true
      shell:
        cmd: lspci -nnk | grep {{ device_id}}
      register: coral_found
      ignore_errors: true

    # If device ID not found
    - when: device_id not in coral_found.stdout
      block:
        - name: "Note"
          debug: msg="Coral Device ID `{{ device_id }}` not found in `lspci -nnk`."

    # If device ID is found then continue
    - when: device_id in coral_found.stdout
      block:
        - name: "Note"
          debug: msg="Coral Device ID `{{ device_id }}` found in `lspci -nnk`."

        - name: "Result from lspci -nnk | grep {{ device_id}}"
          debug: msg="{{ coral_found.stdout }}"

        - name: Check for Apex drivers installed on the system
          become: true
          shell:
            cmd: lsmod | grep apex
          register: apex_drivers
          ignore_errors: true

        - name: "Result from lsmod | grep apex"
          debug: msg="{{ apex_drivers.stdout }}"

        # If not drivers found, continue to install PCIe drivers
        - when: apex_drivers.stdout | length == 0
          block:
            - name: Add repo
              become: true
              shell: echo "deb https://packages.cloud.google.com/apt coral-edgetpu-stable main" | sudo tee /etc/apt/sources.list.d/coral-edgetpu.list

            - stat: path=/usr/share/keyrings/cloud.google.com.apt-key.gpg
              register: repo_key

            - name: Install repo key
              when: not repo_key.stat.exists
              become: true
              shell: curl -fsSL https://packages.cloud.google.com/apt/doc/apt-key.gpg | gpg -o /usr/share/keyrings/cloud.google.com.apt-key.gpg --dearmor

            - name: Update the cache. Only if the last one is more than 3600 seconds ago (apt-get update)
              ansible.builtin.apt:
                update_cache: yes
                cache_valid_time: 3600

            - name: Install required packages for Build, PCIe driver and Edge TPU runtime
              become: true
              apt:
                name:
                  - devscripts
                  - debhelper
                  - dh-dkms
                  - git
                state: present

            - name: Clone Git repo for Gasket driver
              become: true
              ansible.builtin.git:
                repo: "https://github.com/google/gasket-driver.git"
                dest: "gasket-driver"
                force: yes

            - name: "Build and install Gasket driver"
              become: true
              ansible.builtin.shell: |
                cd gasket-driver/ \
                  && debuild -us -uc -tc -b \
                  && cd ../ \
                  && dpkg -i gasket-dkms_1.0-18_all.deb

            - name: Install additional required packages
              become: true
              apt:
                name:
                  - libedgetpu1-std
                state: present

            - name: "Add the `apex` group"
              become: true
              ansible.builtin.shell: |
                sh -c "echo 'SUBSYSTEM==\"apex\", MODE=\"0660\", GROUP=\"apex\"' >> /etc/udev/rules.d/65-apex.rules" \
                  && groupadd apex \
                  && adduser $USER apex
              ignore_errors: true

            - debug:
                msg: "NOTE: Now rebooting the machine as PCIe drivers have been installed"

            - name: Rebooting machine
              become: true
              changed_when: true
              ansible.builtin.reboot:
                reboot_timeout: 300
                msg: "Rebooting machine in 5 seconds"
                # reboot_timeout: 3600

            - name: Re-check for Apex drivers installed on the system
              become: true
              shell:
                cmd: lsmod | grep apex
              register: recheck_apex_drivers
              ignore_errors: true

            - name: "Result from lsmod | grep apex"
              debug: msg="{{ recheck_apex_drivers.stdout }}"


        # If drivers are found from the original check, or the re-check
        - when: apex_drivers.stdout | length > 0 or recheck_apex_drivers.stdout | length > 0
          block:
            - name: Check for Apex devices
              become: true
              shell:
                cmd: ls -al /dev/apex_0
              register: apex_devices

            - name: "Result from ls -al /dev/apex_0"
              debug: msg="{{ apex_devices.stdout }}"

If all is successful, you can now enable Frigate to use the Edge TPU. Based on the Frigate docs (as of 10/03/2025) the following config is:

detectors:
  coral:
    type: edgetpu
    device: pci

And if Frigate is running on this VM in a Docker container, you will need to ensure the Apex device is passed through to the docker container. You should be able to add this to your docker-compose file. As per the Frigate docs:

devices:
    - /dev/apex_0:/dev/apex_0 # Passes a PCIe Coral, follow driver instructions here https://coral.ai/docs/m2/get-started/#2a-on-linux

Discuss on X (Twitter)
